Device&Diver API

Driver

Driver

Constructor

const driver = new Driver(name = 'default-driver-name', type = cutosAPI.DEVICE.DEFAULT, counter = 10)

• name: driver name, default is 'default-driver-name'
• type: device type, default is cutosAPI.DEVICE.DEFAULT
• counter: heartbeat interval, default is 10s

Driver.sendData

Send data to the device

driver.sendData(data)

• data: data

Driver.onCommand

Receive device commands

driver.onCommand(listener)

• listener: listen callback function (command, [callback]), call callback after processing command
• command: command, example: {cmd: "connect", args: ""}
• callback: callback function (result)

SDK

Device

Constructor

const device = new (name = 'default-device-name', type = cutosAPI.DEVICE.DEFAULT)

• name: device name, default is 'default-device-name'
• type: device type, default is cutosAPI.DEVICE.DEFAULT

Device.init

Device initialization

device.init([opts], callback)

• opts: optional parameters, passed to the driver loading process, refer to Driver Template
• callback: callback function

Example:

device.init((result, error) => {
  if (error) {
    console.log(error)
    return;
  }
  console.log(result)
});

Device.sendCommand

Send a command to the driver

device.sendCommand(command, callback)

• command: command, example: command = {cmd: "connect", args: ""}
• callback: callback function, you can pass a listening callback function to listen to the device status

Example:

device.sendCommand({cmd: "connect", args: ""}, Listener(msg))

Device.onData

Receive data sent by the driver

device.onData(listener)

• listener: listener callback function (data)
• data: data

Device driver relationship

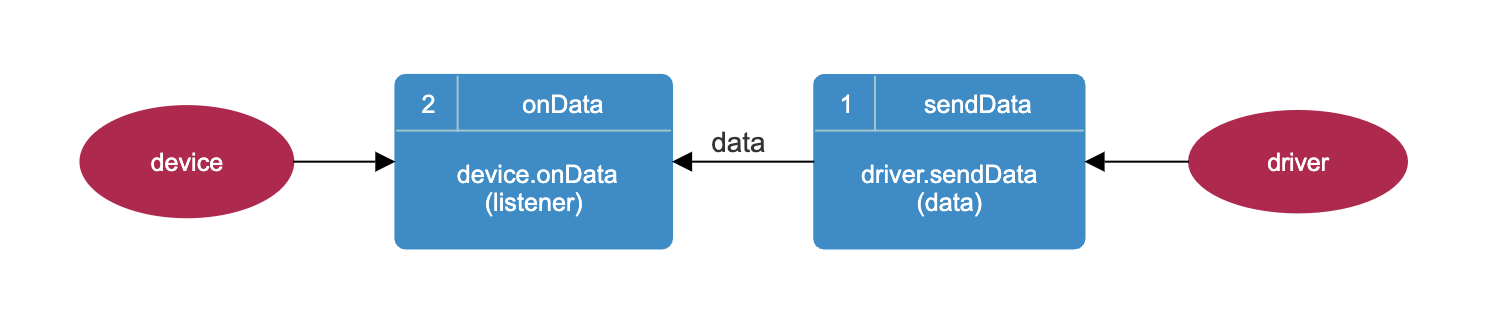

1. onData and sendData

2. sendCommand (without callback function) and onCommand

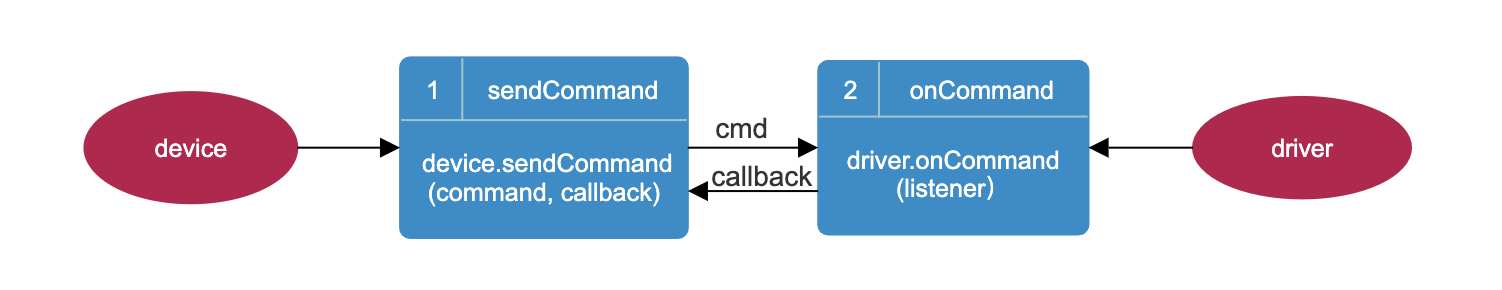

3. sendCommand (with callback function) and onCommand

Device driver management template

Download project template

Project structure

├── driver/                        # Driver
│   ├── src/                       # Driver source directory
│       ├── config.json            # Configuration file, configure related parameters
│       ├── driver-template.js     # Driver template
│       ├── driver-template-def.js # Device driver data definition (same as in SDK)
│       ├── index.js               # Driver loading file
│   ├── test/                      # Test directory
│       ├── main.js                # Test entry file, simulate cutos, create a driver service
│   ├── package.json               # Configuration information for this project
│   ├── gulpfile.js                # Packaging file
│   ├── readme.txt                 # Instructions
├── sdk/                           # Interface SDK
│   ├── src/                       # Source code directory
│       ├── driver-template.js     # Device template
│       ├── driver-template-def.js # Device driver data definition (same as in driver)
│   ├── test/                　　　 # Test directory
│       ├── main.js                # Test entry file
│   ├── package.json               # Configuration information for this project
│   ├── gulpfile.mjs               # Packaging file
│   ├── readme.txt                 # Instructions

Installation dependencies

Note: node version >= 16

cd driver-template/driver
npm install

cd driver-template/sdk
npm install

Project startup

You need to start the driver first, then start the SDK.

npm start

If the startup is successful, the console will return the following content

• driver

CUTOS CORE connected.
CUTOS Simulator started and listening on port  1883
drvDefault onCommand
{
"cmd":"init",
"args":{"name":"driver-template","type":"driver-template","development":true},
"topicResponse":"device-channel-driver-template-response"
}
connect: received.
cmd: custom-cmd  received.
cmd: unknown is unsupported.

• SDK

CUTOS CORE connected.
driver template init true
connect:  { msg: 'return success.', status: true }

Packaging and Release

Packaging Driver

cd driver-template/driver
npm run build

├── driver/
│   ├── dist/                              # Packaging directory
│       ├── driver-template-v1.0.1.drv     # Packaging file

Release the driver

Upload the package file to https://www.cut-os.com/ and publish Hardware/Driver--Add

Packaged Device SDK

cd driver-template/sdk
npm run build

├── sdk/
│   ├── dist/                               # Packaging directory
│       ├── driver-template-sdk-v1.0.2.zip  # Packaging files

Note:

1.The template device-template.js references TYPE, CMD exported in device-template-def.js

import {CMD, TYPE} from './device-template-def.js';

• Device type (TYPE):

• Type constant: key "TEMPLATE", value "Device template".

  • Indicates the template type, identifying the category of the device.

• Command type (CMD):

• CMD constant with two pairs:

• CONNECT: 'connect' represents the connection command.

  • CUSTOM_CMD: "custom-cmd" represents a custom command for a specific device.

2.Configuration requirements: Keep the TYPE parameter 3 in the template consistent so that the driver matches the corresponding SDK.

let device = new DeviceTemplate('device-template',callback) //device-template.js

const TYPE = 'device-template';//device-template-def.js

{"name": "device-template",...}//config.json

Review

The complete code is as follows:

driver

// driver/src/driver-template.js
const {CoreDefine, CoreClass} = require('@cutos/core');
const {TYPE, CMD} = require('./driver-template-def.js');
const config = require('./config.json');

class DriverTemplate extends CoreClass.Driver {
  constructor(args) {
// check
    if (TYPE !== config.type) {
      throw "Error: the 'type' value in config.js and *-def.js MUST be identical.";
    }
    super(args.name, TYPE);

    this.startBeat();
    this.updateStatusInfo(CoreDefine.HEARTBEAT_STATUS.ALIVE, "alive");

    this.onCommand(({cmd, args}, callback) => {
      // Listen to the messages sent by the device SDK, process the different commands in the message body,
      // and respond back to the device SDK through the callback function.
      switch (cmd) {
        case CMD.CONNECT:
          this.connect(args, callback);
          break;
        case CMD.CUSTOM_CMD:
          this.customCmd(cmd, args);
          break;
        default:
          this.unsupported(cmd, args, callback);
          break;
      }
    });
  }

  unsupported(cmd, args, callback) {
    let result = {};
    result.msg = "cmd: " + cmd + " is unsupported.";
    result.status = false;
    console.log(result.msg);
    callback(result);
  }

  connect(args, callback) {
    console.log("connect: received.");
    let result = {};
    result.msg = "return success.";
    result.status = true;
    callback(result);
  }

  // no response
  customCmd(cmd, args) {
    console.log("cmd: " + cmd + args, " received.");
    // process cmd below
  }

  sendCustomData() {
    let data = {};
    data.type = "custom-type"; // custom defined data type
    data.values = {}; // values from template driver
    data.values.val = "any value";
    data.values.timeStamp = Date.now();
    this.sendData(data);
  }
}

module.exports = DriverTemplate;

SDK

// sdk/src/driver-template.js

import {CoreClass} from '@cutos/core';
import {CMD, TYPE} from './driver-template-def.js';

class DriverTemplate extends CoreClass.Device {
  constructor(name, callback, opts = {development: true}) {
    super(name, TYPE, callback, opts);

    this.onData((data) => {
      console.log("on data", data)
    });
  }

  connect(callback) {
    let cmdMessage = {cmd: CMD.CONNECT};
    this.sendCommand(cmdMessage, callback);
  }

  customCmd() {
    let cmdMessage = {cmd: CMD.CUSTOM_CMD, args: ""};
    this.sendCommand(cmdMessage);
  }
}

export {DriverTemplate};

// sdk/test/main.js
import {CoreAPI} from '@cutos/core';
import {DriverTemplate} from '../src/driver-template.js';

CoreAPI.init(null, () => {
  //
  let device = new DriverTemplate('driver-template', ({result, msg}) => {
    console.log("driver template init", result, msg ? " error:" + msg : "");

    device.onData((data) => {
      console.log("on data", data)
    });

    device.connect((result) => {
      console.log("connect: ", result)
    });
    device.customCmd();
    device.sendCommand({cmd: "unknown", args: ""});
  });
});
